E4-2.2K-A

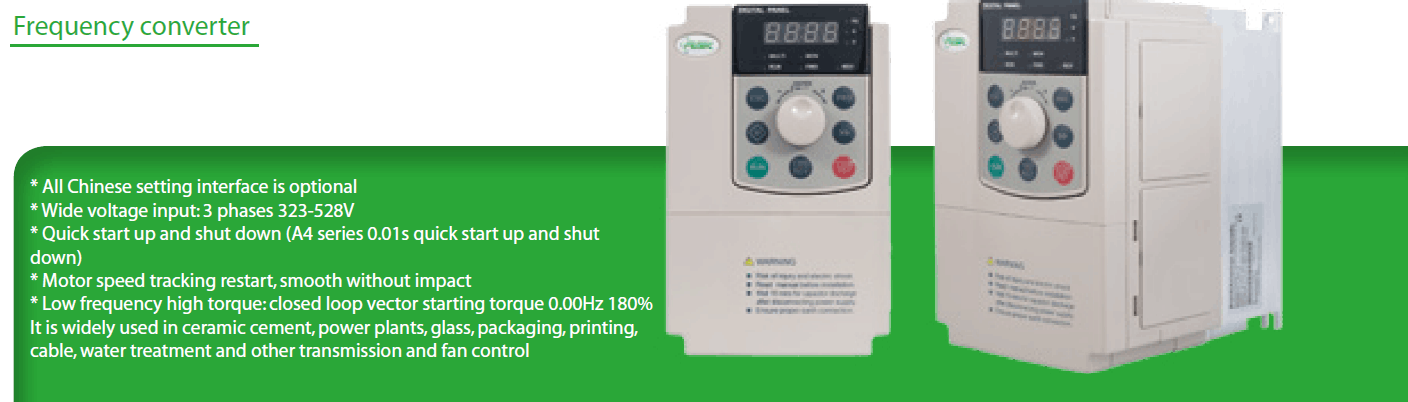

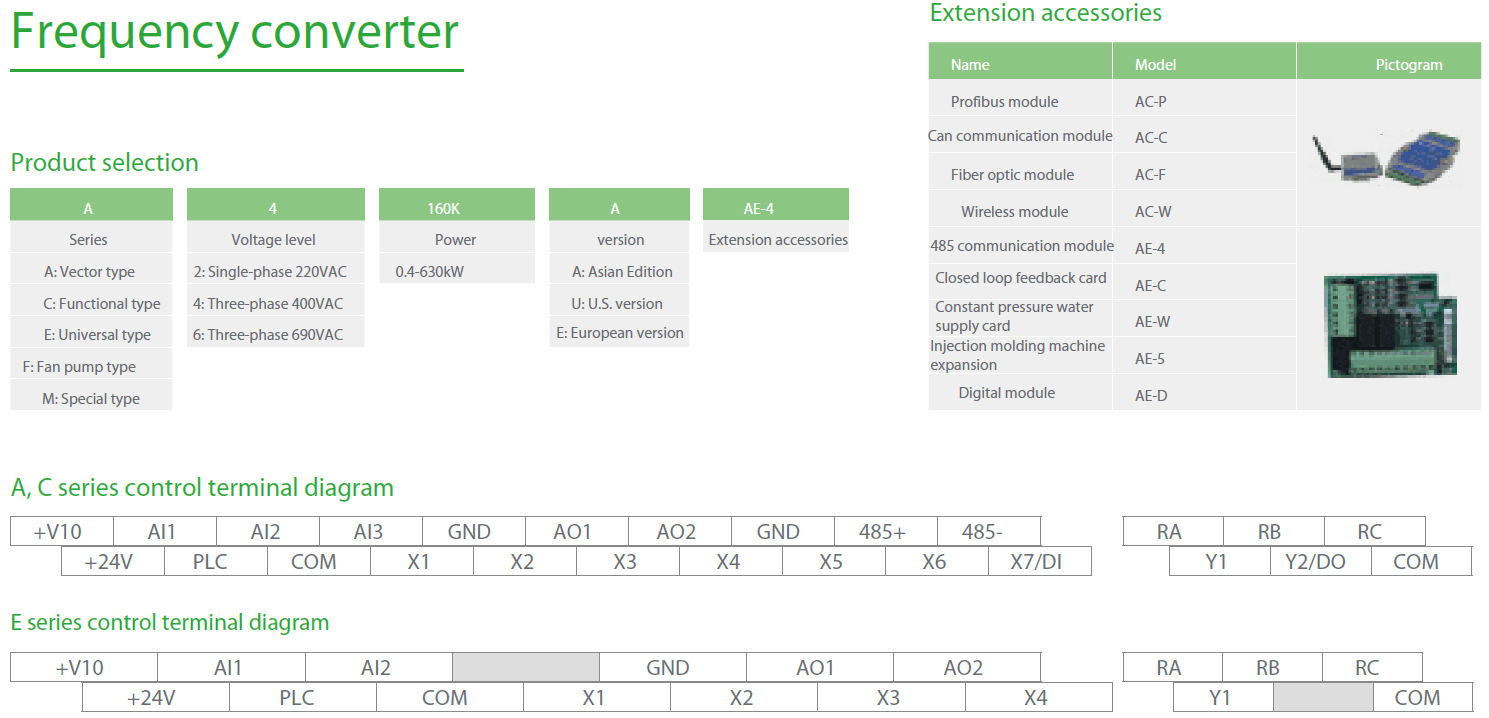

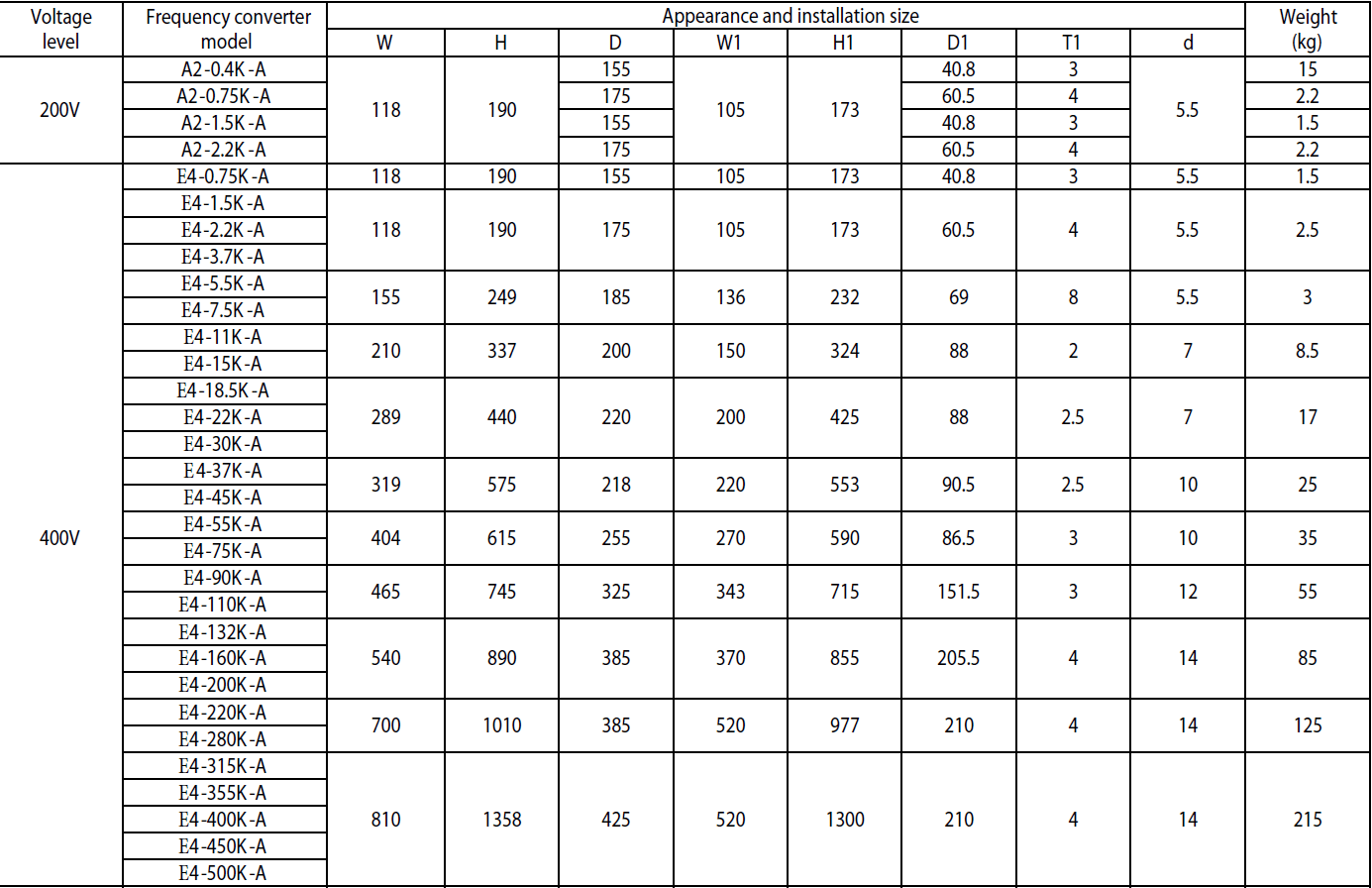

E4 series inverter

1, the E4-H series is a heavy load series with overload capacity of 150% and 1 minutes.

2, the E4 series does not have standard communication 485 interfaces. If you need to increase the communication function, please indicate in the order.

  • Characteristic performance:

    Revolving speed
    tracking start
    The frequency converter recognizes the speed of the rotating motor and directly tracks the start from the identified frequency.
    The current and voltage in the starting process are smooth and no-impact

    Low frequency high
    torque
    Closed loop vector control 0.00Hz 180%; Open loop vector control 2:0.25Hz 180% ; Open loop vector control 1: 0.50Hz 180%

    Key functionsTorque/speed control mode switching, multi-function input/output terminals, undervoltage regulation, three-way switching,
    revolving speed tracking,torque limit, multi-speed operation (up to 23 sections), auto-tuning, S-curve acceleration/deceleration
    slip compensation, PID adjustment, droop control, current limit control, manual/automatic torque boost, current limit

    Frequency range0 . 00~300 . 00 H z Note: Open loop vector control 1 mode 0 . 0 ~ 3000 . 0 H z can be customized according to customer needs

    Starting frequency0. 00~60. 00Hz

    Acceleration and
    deceleration time
    0. 1 ~ 36000s. (A4 above supports 0.01s)

    Energy consumption
    braking capacity
    Braking unit operating voltage: 650 to 750V

    DC braking capabilityDC braking starting frequency: 0. 00 ~ 300. 00Hz. DC braking current: constant torque 0. 0 ~ 120. 0%; variable torque 0. 0 ~ 90.
    0% DC braking time: 0. 0~30. 0s: No need of DC brake start waiting time for quick braking

    Flux brake functionContinuing operating, no operating is optional during deceleration, factory default does not operate during deceleration

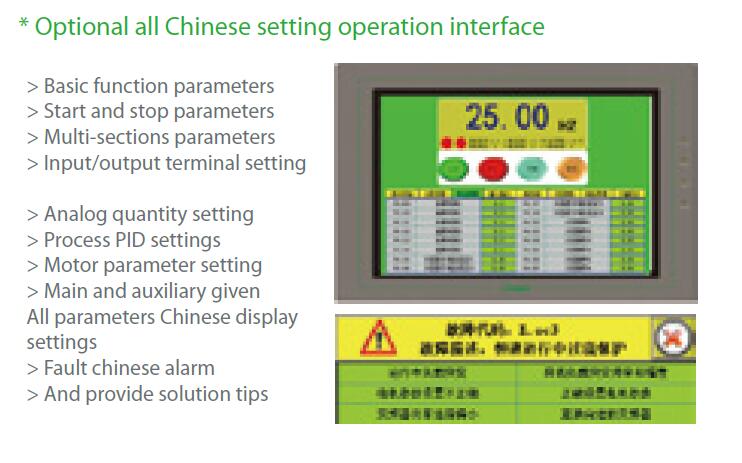

    Copy of parametersThe standard operation panel can realize parameter uploading and downloading with a copy progress indication; the uploaded
    parameters can be selected to be prohibited from being uploaded and overwritten.

    Common DC busFull series can realize multiple frequency converters sharing DC bus power supply

    Independent ductThe whole series adopts independent air duct design to support the ambient installation mode of radiator

    Universal expansion
    interface
    Support customers for secondary development of universal expansion board with CPU: Physical interface SPI bus, software protocol
    Mod bus

    Expansion cardPG feedback card, constant pressure water supply module, Modbus, Profibus, Can communication adapter

    Power on self-
    inspection
    Achieve power-on self-inspection of internal and external circuits, such as motor grounding, +10 V power output abnormality,
    analog input abnormality, and disconnection.

    Special protectionUndervoltage, overcurrent protection, overvoltage protection, interference protection, auto-tuning fault, module protection,
    radiator overheat protection, frequency converter overload protection, motor overload protection, peripheral protection,
    abnormal current detection, abnormal output short circuit current to earth, abnormal power off during operation, input power
    supply abnormality, output phase loss abnormality, EEPROM abnormality, relay pull-in abnormality, temperature sampling
    disconnection, encoder disconnection, +10 V power output abnormality, analog input abnormality, motor overheat (PTC),
    communication abnormality, version compatibility abnormalit y, copy abnormality, expansion card connection abnormality, terminal
    mutex check failed, hardware overload protection
