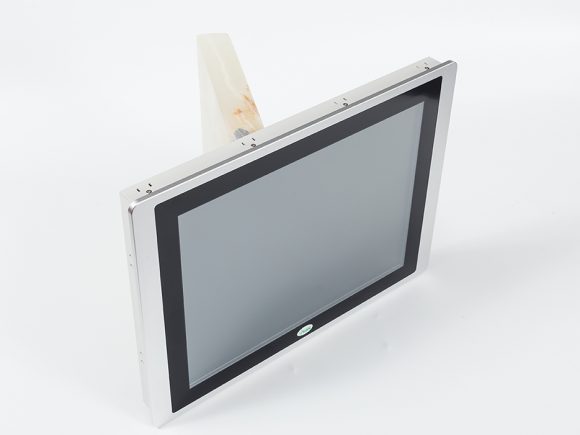

AST-150T

Size:   15″

Display type:        TFT color touch screen (LED backlight), 65536 colors TFT LCD with LED Backlight, Max. colors 16-bit

Backlight life(hr) :       50000 hours /hrs

Display contrast (cd/m2 ) :64M

Program memory(AP) :          8M

Data memory(Data File)    :  1:N/A    2/4:128M

Serial interface:   COM1: RS232/RS422/RS485 COM2: Type A (RS422/RS485) Type B (RS232/485) Type C (RS232 with CTS, RTS signal) COM3: RS232 (Optional RS485)

USB:       1 host(USB1.0),1 slave(USB2.0)

Ethernet:     1/2:N/A 4: Yes (10/100M)

Front USB:      N/A

Input voltage:      24VDC±10%

Panel size(w * h, mm):  399.1*297.6

Cutout dimension(A*B mm):384.5*283.0

  • Industrial HMIOEM Customization

    Various forms

    1. All-in-one: HMI+PLC
    2. Front USB interface
    3. Front function keys
    4. Customization external keyboard
    5. Hand-held design
    6. VESA installation design
    7. Bare computer supply
    8. Accept customization

    Rich interface options

    1. Ethernet
    2. Micro SD socket
    3. RS232 serial port
    4. RS485/422 serial port
    5. Audio output interface
    6. Image input interface
    7. CAN bus interface
    8. VNC network remote monitoring
    9. U disk, USB download,
    USB mouse, USB keyboard,
    USB printer, etc. ge input interface

  • Parameter nameParameter values
    TypeAST-150T
    Size15"
    Max. resolution1024*768
    Display typeTFT color touch screen (LED backlight), 65536 colors TFT LCD with LED Backlight, Max. colors 16-bit
    Backlight life(hr)50000 hours /hrs
    Display contrast (cd/m2 )350
    Touch panel5-wire resistive 5-wire analog touch panel
    CPURISC ARM9 32Bit
    Graphics accelerator2D engine graphics accelerator
    Backup SRAM128KB (1024KB optional)
    Working memory(OS)64M
    Program memory(AP)8MB
    Data memory(Data File)1:N/A 2/4:128M
    Micro SD slot1:N/A 2/4:Yes
    Real-Time clock(RTC)Yes
    Max screenUp to 7999 pages
    MacroUnlimited macro instruction
    Serial interfaceCOM1: RS232/RS422/RS485 COM2: Type A (RS422/RS485) Type B (RS232/485) Type C (RS232 with CTS, RTS signal) COM3: RS232 (Optional RS485)
    USB1 host(USB1.0),1 slave(USB2.0)
    Ethernet1/2:N/A 4: Yes (10/100M)
    Front function keysN/A
    Front USBN/A
    Input voltage12-24VDC±10%
    Consumption25W
    Operating temperature-10-60℃
    Storage temperature-20-60℃
    Relative humidity10%-90%
    Ingress protectionNEMA4/IP66
    Resistance to shock10-55Hz(X, Y, Z three axial, 1G, 30 minute shock test)
    EMIFCC Part 15 Class A
    CEEN61000-6-2,EN61000-6-4
    Cooling methodNatural cooling
    Panel size(w * h, mm)399.1*297.6
    Cutout dimension (A*B mm)384.5*283.0
