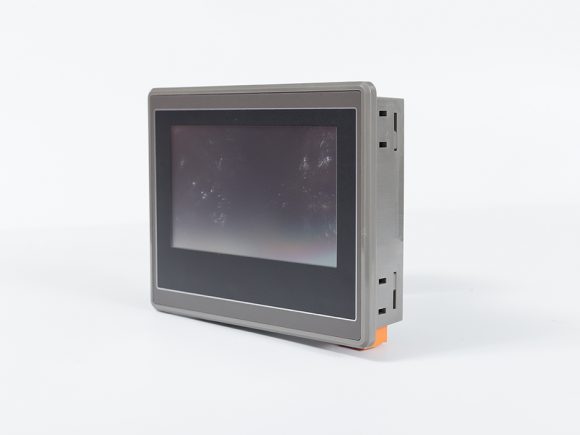

AST-100A

Negotiable

Size:       10″
Display type:   TFT color touch screen (LED backlight), 65536色 TFT LCD with LED Backlight ,Max. colors 16-bit
(hr) Backlight life:      20000 hours  /hrs
(OS) Working memory: 32M
(AP) Program memory:          8M
(Data File) Data memory        :    10:N/A     20:128M
Serial interface:     COM1:RS232/422/485  COM2:N/A   COM3:RS232(可选RS485)
USB :  1 master,1 Slave(USB2.0)
Ethernet:      1/2: N/A 4: Yes (10/100M) 1/2:N/A 4: Yes (10/100M)
Input voltage       :   12-24VDC±10%
 Panel size(w * h, mm):   270.1*212.1
Cutout dimension(A*B mm)         :       259.5*201.5

  • Parameter nameParameter values
    Model TypeAST-100A
    Size of the Size10.2"
    Resolution Max. Resolution1024*600
    Display type Display typeTFT color touch screen (LED Backlight), 65536 color TFT LCD with LED Backlight,Max. Colors 16-bit
    Hr Backlight life20000 hours/HRS
    CD /m2 Display contrast350
    Touch the Touch panel4 wire resistance 4-wire analog touch panel
    CPU central processing unitARM926EJ-S 32Bit RISC ARM9 32Bit
    Graphics accelerator Graphics accelerator2D engine graphics accelerator 2D engine graphics accelerator
    Battery memory Backup SRAM128KB (1024KB optional)
    Working memory (OS) Working memory64MB
    Application memory (AP) Program memory20MB
    Data File Data memory64MB
    Micro SD card expansion slot Micro SD slotN/A
    Calendar (clock) real-time clock(RTC)Batteries with disposable batteries, use time of 3 years.
    Max screenWithin 30 pages
    Macro MacroMax. 100 line macro instruction at most
    A Serial port Serial interfaceCOM1:RS232 COM2:RS422/485 COM3:RS485 (DB9)
    USB1 master,1 Slave(USB2.0)
    State EthernetN/A
    The Front function keysCustomization options(F1~F7) note 2
    Front USB Front USBCustomization options(1 Master USB2.0)
    Input voltage12-24VDC±10%
    Power-on power Consumption3.5W
    Operating temperature- 10-50 ℃ (can be custom options for Customization options - 30-70 ℃)
    Storage temperature-20-60℃
    Relative humidity10%-90%
    Front panel waterproof and dustproof grade Ingress protectionIP54(Customization options IP65)
    Resistance to shock vibration10-55hz (X,Y,Z triaxial, 1G, 30-minute vibration test X,Y,Z three axial, 1G, 30 minute shock test)
    EMIFCC Part 15 Class A
    CEEN61000-6-2,EN61000-6-4
    Cooling methodNatural cooling
    Panel size(w * h, mm)270.8*212.8
    Cutout dimension (A*B mm)259.5*201.5

    Note 1: AST-043A communication port is 5pin terminal connector, of which COM2 is optional.

    Note 2: the ast-070a can only extend the f1-f6 front button, and the ast-043a cannot extend the front button.

    Note 3: optional UL certification specification
