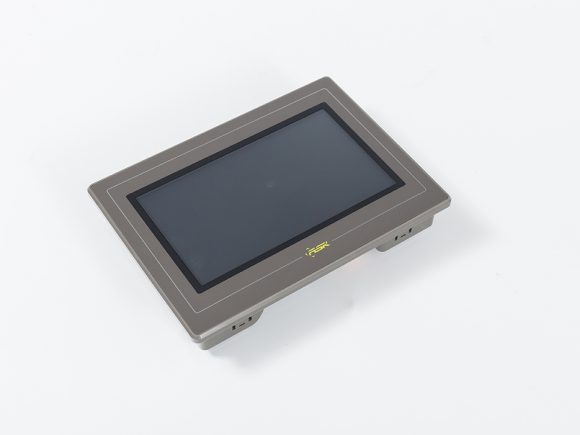

AST-043A

interview

Size：8″
Display type：TFT color touch screen (LED backlight), 65536色 TFT LCD with LED Backlight ,Max. colors 16-bit
(hr) Backlight life： 20000hours/hrs
(cd/m2) Display contrast：      250:1
Touch panel：   4-wire analog touch panel
Ethernet:      1/2:N/A  4:Yes（10/100M ）
Serial interface:     COM1:RS232/RS422/RS485  COM2:N/A   COM3:RS232 （(OptionalRS485）
USB:        1 master,1 Slave(USB2.0)
(Data File) Data memory        :   1:N/A    2/4:128M
Input voltage:      24VDC±10%
 Panel size(w * h, mm):     231.5*174.5
 Cutout dimension(A*B mm):  221.0*164.0

  • Industrial HMIOEM Customization

    Various forms

    1. All-in-one: HMI+PLC
    2. Front USB interface
    3. Front function keys
    4. Customization external keyboard
    5. Hand-held design
    6. VESA installation design
    7. Bare computer supply
    8. Accept customization

    Rich interface options

    1. Ethernet
    2. Micro SD socket
    3. RS232 serial port
    4. RS485/422 serial port
    5. Audio output interface
    6. Image input interface
    7. CAN bus interface
    8. VNC network remote monitoring
    9. U disk, USB download,
    USB mouse, USB keyboard,
    USB printer, etc. ge input interface

  • Parameter nameParameter values
    Model TypeAST-043A
    Size of the Size4.3"
    Resolution Max. Resolution480*272
    Display type Display typeTFT color touch screen (LED backlight), 65536 colors TFT LCD with LED Backlight, Max. colors 16-bit
    Hr Backlight life20000 hours /hrs
    CD /m2 Display contrast400
    Touch the Touch panel4-wire analog touch panel
    CPU central processing unitARM926EJ-S 32 Bit RISC ARM9 32Bit
    Graphics accelerator Graphics accelerator 2D engine graphics accelerator
    Battery memory Backup SRAM128KB (1024KB optional )
    Working memory (OS) Working memory64MB
    Application memory (AP) Program memory20MB
    Data File Data memory64MB
    Micro SD card expansion slot Micro SD slotN/A
    Calendar (clock) real-time clock(RTC) Yes（disposable batteries, use time of 3 years）
    Max screen Within 30 pages
    Macro Max. 100 line macro instruction
    A Serial port Serial interfaceCOM1:RS232 COM2:RS422/485 COM3:RS485 (DB9)
    USB1 master,1 Slave(USB2.0)
    State EthernetN/A
    The Front function keysCustomizable options (F1~F7)
    Front USB Front USBCustomizable options (1 Master USB2.0)
    Input voltage12-24VDC±10%
    Power-on power Consumption2W
    Operating temperature-10-50℃ ( Customization options -30-70℃ )
    Storage temperature-20-60℃
    Relative humidity10%-90%
    Front panel waterproof and dustproof grade Ingress protectionIP54(Customization options IP65)
    Resistance to shock vibration10-55Hz(X, Y, Z three axial, 1G, 30 minute shock test)
    EMIFCC Part 15 Class A
    CEEN61000-6-2,EN61000-6-4
    Cooling method Natural cooling
    Panel size(w * h, mm)129.0*103
    Cutout dimension (A*B mm)118.5*93
