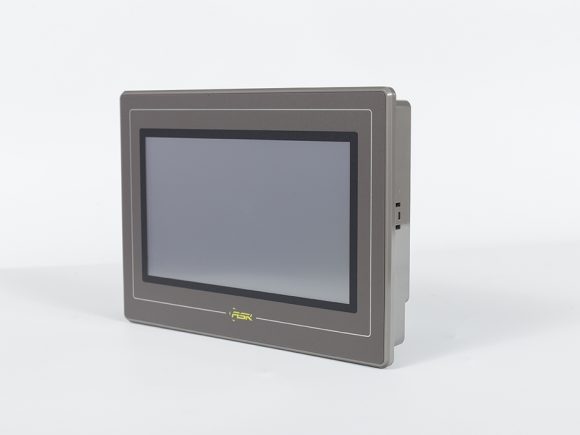

AST-070THS0A

discuss personally

Size Size: 7″
Display type: TFT color touch screen (LED Backlight), 65536 TFT LCD with LED Backlight, max-colors 16-bit
Backlight life (hr) Backlight life: 20000 hours/HRS
Working memory: 64M
Application memory (AP) Program memory: 8M
Data File Data memory :128M 10:N/A 20:128m N/A
Serial interface: rs232/422/485
USB: 1 host (USB1.0),1 passenger slave (USB2.0)
Ethernet: 1/2:N/A 4: yes (10/100m)
Input voltage: 24VDC + / – 10%
Panel size(width * height,mm) Panel size(w * h, mm): 188.0*143.3
Opening size (width * height,mm) Cutout dimension(A*B mm) : 175.0*132.5

  • Industrial HMIOEM Customization

    Various forms

    1. All-in-one: HMI+PLC
    2. Front USB interface
    3. Front function keys
    4. Customization external keyboard
    5. Hand-held design
    6. VESA installation design
    7. Bare computer supply
    8. Accept customization

    Rich interface options

    1. Ethernet
    2. Micro SD socket
    3. RS232 serial port
    4. RS485/422 serial port
    5. Audio output interface
    6. Image input interface
    7. CAN bus interface
    8. VNC network remote monitoring
    9. U disk, USB download,
    USB mouse, USB keyboard,
    USB printer, etc. ge input interface

  • Series Series: T Series functional man-machine interface

    TYPE: AST-070T

    Size Size: 7″

    Resolution Max. Resolution: 800*480

    Display type: TFT color touch screen (LED Backlight), 65536 TFT LCD with LED Backlight, max-colors 16-bit

    Backlit life (hr) Backlight life: 50000 hours/HRS 20000 hours/HRS

    LCD screen brightness (CD /m2) Display contrast: 300:1

    Touch panel: 4 wire resistance 4-wire analog Touch panel

    CPU: arm926ej-s32 bit RISC ARM9 32Bit

    Graphics accelerator: 2D engine Graphics accelerator

    Battery memory Backup SRAM: 128KB(optional: 1024KB)

    Working memory: 64M

    Application memory (AP) Program memory: 8M

    Data memory (Data File) Data memory: 1: N / 2/4:12 8 a. m

    Micro SD slot: 1:N/A 2/4: Yes

    Calendar (clock) Real Time clock(RTC) : Yes

    Page number Picture quantity: 7999 screen Up to 7999 pictures

    Macro: Unlimited Unlimited Macro instruction

    Micro SD slot: 1:N/A 2/4: Yes

    Serial interface: COM1:RS232/RS422/RS485

    USB: 1 host (USB1.0),1 passenger slave (USB2.0)

    Ethernet: 1/2:N/A 4: yes (10/100m)

    Front function key: N/A

    Front USB: N/A

    Input voltage: 24VDC + / – 10%

    Power Consumption: 15W

    Working temperature Operating temperature: – 10 to 60 ℃

    Storage temperature Storage temperature: – 20 to 60 ℃

    Relative Relative humidity: 10%-90%

    Front panel waterproof and dustproof class Ingress protection: NEMA4/IP66

    Vibration resistance: 10-55hz (X,Y,Z triaxial, 1G, 30 minute Vibration test X,Y,Z three axial, 1G, 30 minute shock test)

    EMI: FCC Part 15 Class A

    CE: EN61000-6-2, EN61000-6-4

    Cooling method: Natural Cooling

    Panel size(width * height,mm) Panel size(w * h, mm): 188.0*143.3

    Opening size (width * height,mm) Cutout dimension(A*B mm): 175.0*132.5

    Classification: ASK programmable man-machine interface (HMI)

  • application:

    Electric bus, bus, passenger car, hybrid electric bus, rail car, logistics car, heavy truck.
