APC-15″

Aluminum Alloy die-casting molding, no fan design

15 inch LED TFT LCD capacitive / resistive screen

Intel Skylake-U Core I3/I5/I7 CPU

1*DDR4 2133 SODIMM, maximum support 16GB

1*Mini PCIe, 1*PCI or 1*PCIeX1

4*COM, 2*LAN, 4*USB3.0,1*USB2.0

2.5 inch SATA disk, 1*M.2

9~36V DC remote power switch input

Classification: ASK programmable interface (HMI)
describe

  • CPU: Intel Skylake Core I3-6100U 2.3GHz, 2C4T, TDP 15W (optional I5-6200U, I7-6500U) Intel Skylake Celeron 3855U 1.6GHz, 2C2T TDP, 15W
    Chipset: Intel SOC
    System memory: 1*DDR4 2133MHz SODIMM, maximum support 16GB
    BIOS: Insyde SPI 64M Flash
    Storage: 1*2.5 inch SATA HDD disk, 6Gbps support SATA3.0 HDD/SSD, 1*M.2 (2242 B-Key)
    Display: 12.1 inch LED TFT LCD & HDMI Intel HD Graphics dual display, 510/520, HDMI support 4K resolution
    Touch screen: 5 line resistive screen (projected capacitive screen optional), USB control
    Extension: 1*Mini PCIe (PCIe&USB): 1*32 PCI or 1*PCIe X4 (X1 signal)

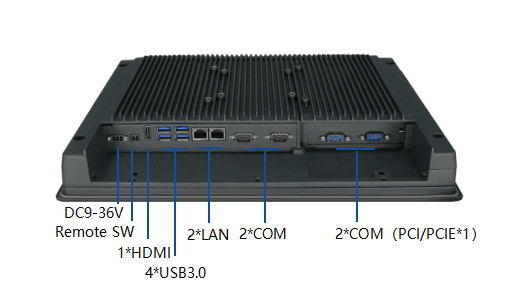

    The rear panel I/O:
    4*COM:2*RS232,2*RS232/422/485, DB9 (when using the extension of PCI/PCIe, only two serial port) 4*USB3.0 A
    1*HDMI
    2*RJ45
    The front panel of I/0: 1*USB2.0 A
    LAN: Intel I210AT chip, 10/100/1000 Mbps
    Control and LED: 1*ATX switch, 2 pin remote switch interface, HDD indicator
    Power requirements: DC: 9~36V.
    Operating system: Windows 7, Windows 8.1, Windows 10, Linux
    Structure design: Aluminum Alloy die-casting molding, flat panel, fin radiating shell
    Working temperature: 0~50 degrees -HDD (-10 ~ 55, -SSD C) with air flow
    Storage temperature: -20~60 degrees
    Storage humidity: 10~95%@40 degrees, no condensation
    Vibration: 10g peak acceleration (11ms), HDD operation
    The impact of 1G 5~500Hz, with HDD running.
    Installation: installation panel, VESA 75*75mm

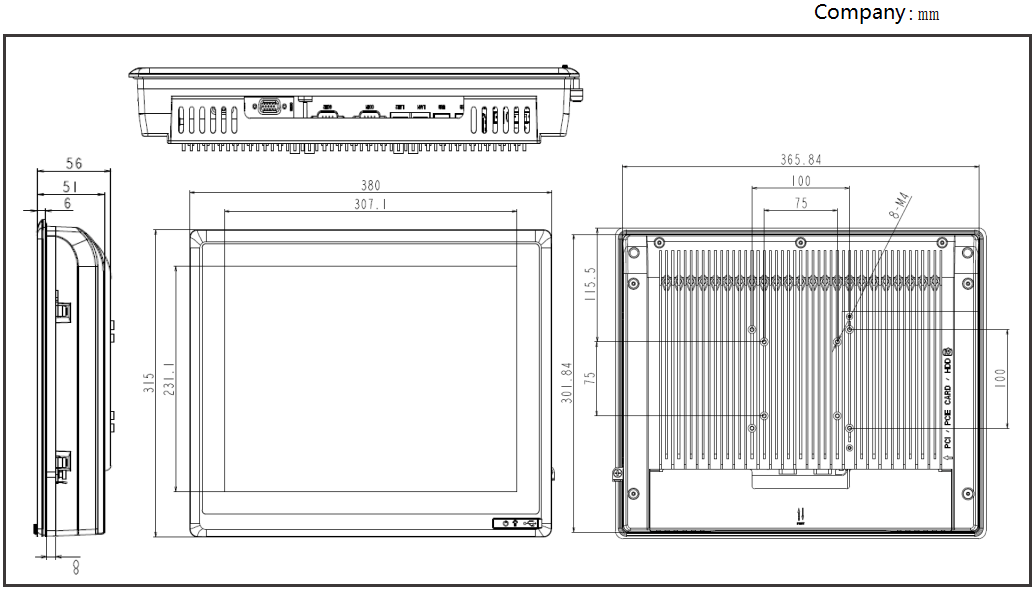

    Size: (W*H*D): 380*315*56mm; panel mounting opening (W*H): 367.3*303.3mm
    Net weight: 4.30kg
    EMC: CE, FCC Class A
    Type: 15.0 inch TFT LED
    Resolution: 1024*768
    Color depth: 16.2M
    Lattice distance: 0.297*0.297 (mm)
    Brightness (cd/m2): 350
    Vision: 80 degrees (left), 80 degrees (right), 80 degrees, 80 degrees (on) (the)
    Working temperature: -20~70 degrees
    Backlight life: 50000 hours
    Type: 5 line resistance screen projected capacitive screen
    Resolution: consecutive
    Transmittance: 83% 90%
    Controller: USB
    Power consumption: 5V @200mA 5V @300mA
    Operating system:  Windows/Linux
    Clicking life:  3000Millions of times
